Technical Product Catalog
A comprehensive guide to our engineering solutions and welding technologies.
Robotic Systems
Advanced 6-axis robotic cells integrated with Yaskawa and Fanuc controllers. Precision spot and laser welding for complex automotive assemblies.
SPM for Railways
Special Purpose Machines designed for coach floor panels, side walls, and roof structures. Heavy-duty gantry systems with integrated IT guns.
Resistance Welders
Standard range of Spot, Projection, and Seam welding machines. Capacitor Discharge (CD) welders for precision electronics and sheet metal.
Engineering Capabilities

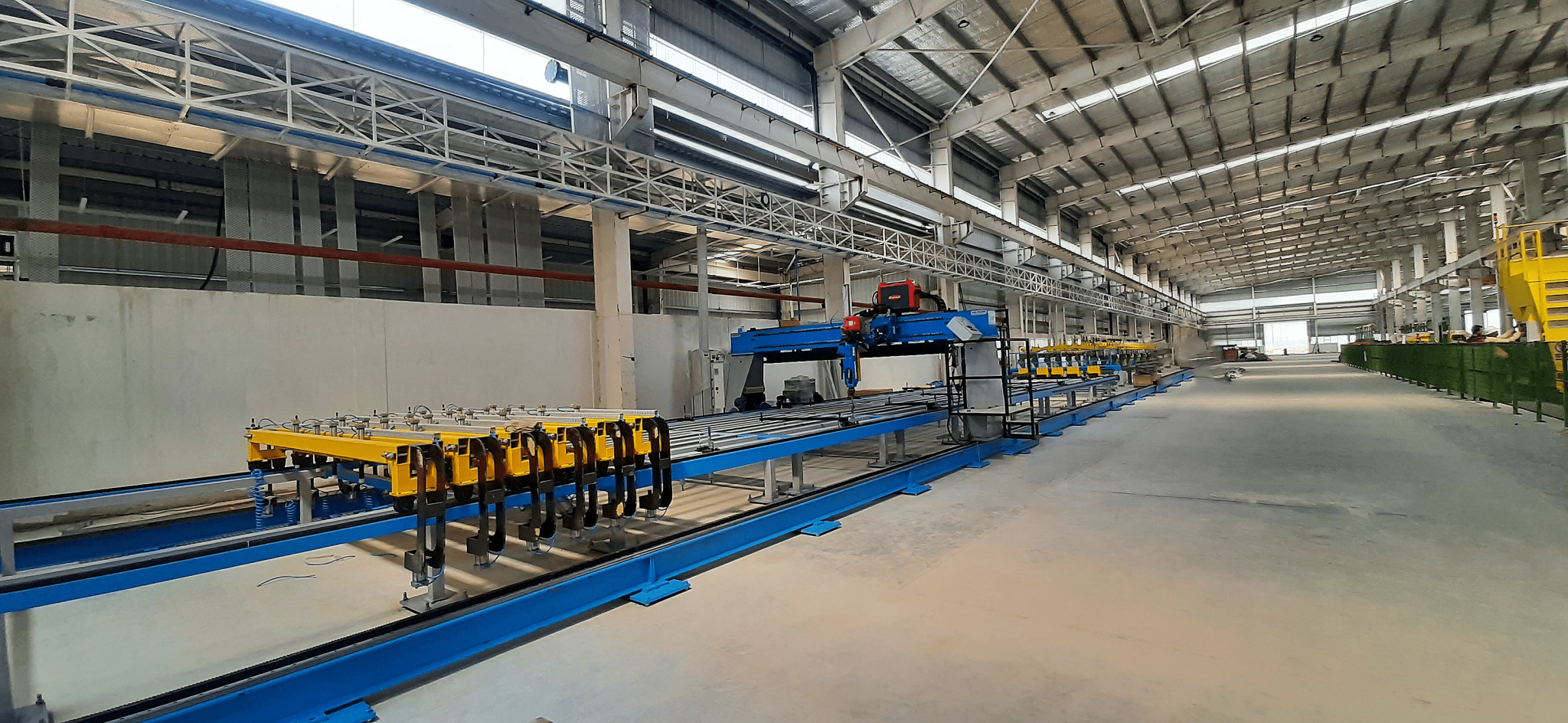

Automated Gantry Systems
Multi-axis control for large-scale production.

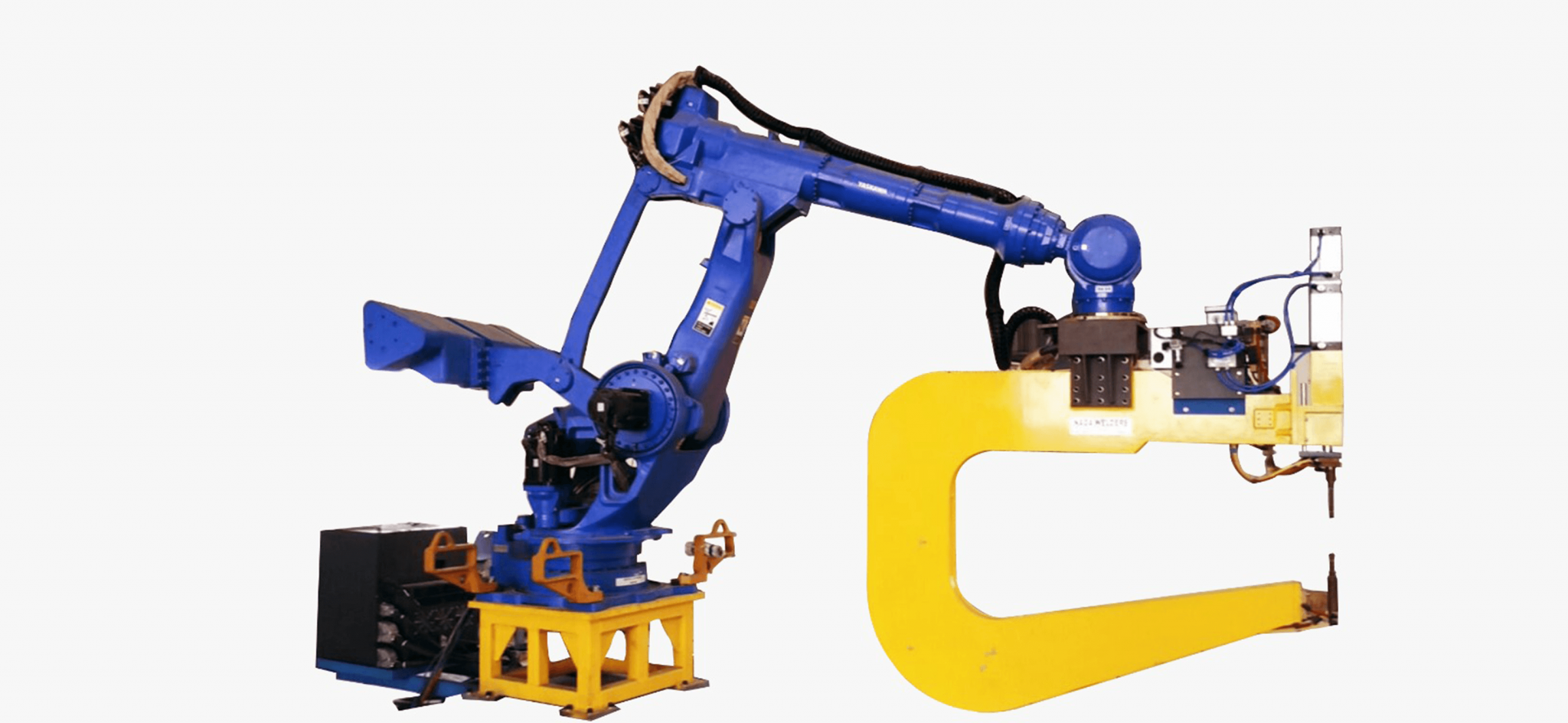

Robotic Spot Welding Cells
High-speed, high-accuracy welding for production lines.
Universal Robotic Gantry System
Universal Robotic Welding System
A versatile, high-precision robotic solution suitable for:
- Laser Welding
- MIG Welding
- TIG Welding
- Laser Cutting Applications
This system features a 9 to 11-axis articulated vertical robotic gantry setup, engineered for heavy-duty industrial use.
Key Applications:
- Rail Coach Manufacturing: Sidewall, Roof, Underframe, Bogie Assembly, End Wall etc.
- Automotive and Bus Body Fabrication
- Defense Equipment Manufacturing
- Aerospace Structures and Aircraft Component Integration
System Specifications:
- Cross Travel: 2 to 6 meters
- Long Travel: 28 meters (extendable up to 80 meters)
- Vertical Travel: 1 meter to 3.5 meters
- Accuracy: 0.3 to 0.5mm
- Expandable Architecture: Multi-gantry integration on same track.
- Flexibility: Automatic tool changeover (guns, grippers, etc.).
Technical Highlights
- Transformer Efficiency: 95%+ efficiency with water cooling.
- Control Units: Microprocessor based with 63+ weld programs.
- Force Output: Adjustable from 1.5kN to 40kN models.
- Materials: Steel, Aluminum alloys, Galvanized, Stainless.
- Accuracy: Spot positioning within ±0.1mm.
- Safety: Integrated light curtains and dual-hand start.
Download the Complete Technical Portfolio
For detailed dimensions, power requirements, and customized machine options.
Download Full Catalog PDFVersion: V3.1 | File Size: 8.4 MB
